Angle Seat Valve

(NS012-C)
AGB stainless steel actuator angle seat valve is a type of control valve used in various industrial applications. These valves combine the features of an angle seat valve with a stainless-steel actuator. They are designed to provide reliable and precise control over fluid flow, especially in demanding environments.

When selecting a stainless-steel actuator angle seat valve for a specific application, it's crucial to consider factors such as fluid type, temperature, pressure, flow rates, and the compatibility of valve materials with the process fluids. Proper installation and adherence to safety guidelines are essential to ensure the reliable and safe operation of these valves in industrial processes.
0

Quantity:
Specifications
  • Actuator Type: Stainless Steel, 304
  • Connection Type: Tri-Clamp
  • Pipe Size: 1/2"
AGB stainless steel actuator angle seat valve is a type of control valve used in various industrial applications. These valves combine the features of an angle seat valve with a stainless-steel actuator. They are designed to provide reliable and precise control over fluid flow, especially in demanding environments.

When selecting a stainless-steel actuator angle seat valve for a specific application, it's crucial to consider factors such as fluid type, temperature, pressure, flow rates, and the compatibility of valve materials with the process fluids. Proper installation and adherence to safety guidelines are essential to ensure the reliable and safe operation of these valves in industrial processes.

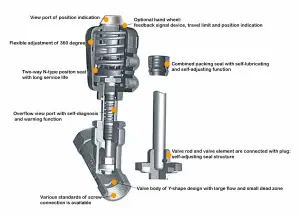

1. Valve Structure:
  • Stainless steel actuator angle seat valves have a valve body with an inclined valve seat and a piston that is positioned at an angle to the flow path.
2. Actuation:
  • These valves are actuated using compressed air to control the valve's opening and closing by lifting the piston away from or onto the valve seat, allowing for fluid flow control.
3. Materials:
  • Both the valve body and the actuator housing are constructed from stainless steel. Stainless steel is chosen for its excellent corrosion resistance and durability, making it suitable for use in harsh industrial environments.
4. Applications:
  • Stainless steel actuator angle seat valves are widely used in applications where precise control of fluid flow is required, particularly in industries such as food and beverage, pharmaceuticals, chemical processing, water treatment, and HVAC systems.
5. Advantages:
  • Corrosion Resistance: Stainless steel construction provides excellent resistance to corrosion, making these valves suitable for use with aggressive or corrosive fluids.
  • Durability: Stainless steel valves are known for their durability and ability to withstand harsh operating conditions.
  • Precise Control: These valves offer accurate control over fluid flow rates, making them ideal for applications requiring precise regulation.
7. Flow Configurations:
  • Stainless steel actuator angle seat valves can be configured for various flow control applications, including diverting, mixing, or isolating fluid flow.
8. Maintenance:
  • Routine inspection, cleaning, and maintenance are essential to ensure the long-term reliability and performance of stainless-steel angle seat valves.
9. Safety Considerations:
  • In applications involving hazardous or toxic fluids, proper safety measures must be implemented to ensure the safe operation of the valve and protect personnel and the environment.
