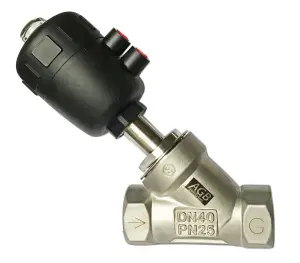

Angle Seat Valve

(NP012-C)
AGB poly actuator angle seat valves are pneumatically actuated angle seat valve with a polymer actuator. These valves combine the features of an angle seat valve with an actuator made from polymer materials.

When selecting a poly actuator angle seat valve, it's crucial to consider factors such as fluid type, temperature, pressure, flow rates, and the compatibility of valve materials with the process fluids. The use of a polymer actuator can provide added resistance to chemical corrosion and extend the valve's service life in aggressive environments. Proper installation, maintenance, and adherence to safety guidelines are essential for ensuring reliable and safe valve operation in industrial processes.
0

Quantity:
Specifications
  • Actuator Type: Polyamide Nylon (PA)
  • Connection Type: Tri-Clamp
  • Pipe Size: 1/2"
AGB poly actuator angle seat valves are pneumatically actuated angle seat valve with a polymer actuator. These valves combine the features of an angle seat valve with an actuator made from polymer materials.

When selecting a poly actuator angle seat valve, it's crucial to consider factors such as fluid type, temperature, pressure, flow rates, and the compatibility of valve materials with the process fluids. The use of a polymer actuator can provide added resistance to chemical corrosion and extend the valve's service life in aggressive environments. Proper installation, maintenance, and adherence to safety guidelines are essential for ensuring reliable and safe valve operation in industrial processes.
1. Valve Structure:
  • Like standard angle seat valves, poly actuator angle seat valves have an inclined valve seat and a piston that is positioned at an angle to the flow path.
2. Actuation:
  • Poly actuator angle seat valves are actuated pneumatically. Compressed air is used to control the opening and closing of the valve by lifting the piston away from the valve seat to allow fluid flow or closing it to stop the flow.
3. Polymer Actuator:
  • What sets poly actuator angle seat valves apart is the use of a polymer actuator. The actuator housing, which encases the actuation mechanism, is made from polymer materials. These materials are chosen for their durability, corrosion resistance, and suitability for specific applications.
4. Applications:
  • Poly actuator angle seat valves are used in a range of applications, including those where resistance to aggressive chemicals or corrosive environments is required. Common applications include water treatment, chemical processing, food and beverage, and pharmaceutical industries.
5. Advantages:
  • Chemical Resistance: The polymer actuator is highly resistant to corrosion and chemical attack, making it suitable for use with aggressive fluids and corrosive environments.
  • Durability: The use of polymer materials enhances the durability of the actuator, even in harsh conditions.
  • Precise Control: These valves offer accurate control over fluid flow rates, making them ideal for applications requiring precise regulation.
6. Material Options:
  • While the actuator housing is typically made from polymer materials, other components of the valve, such as the valve body and internals are still made from stainless steel.
7. Maintenance:
  • Poly actuator angle seat valves are generally easy to maintain. Regular inspection and cleaning are recommended to ensure optimal performance.
