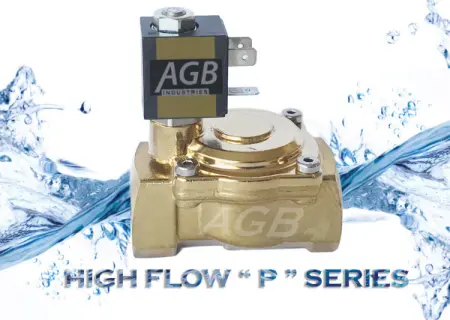

AGB pilot operated solenoid valves offer some of the highest flow rates in the industry with a small physical footprint. Designed to be compact for ease of installation and serviceability. The solenoid valves can easily be converted between normally closed and normally open operation with the addition of one external part without having to remove the valve from existing piping. The ability to convert the valves reduces the amount of inventory required to cover multiple applications.
A pilot-operated solenoid valve is a type of solenoid valve that uses a small pilot to control the opening and closing of a larger main orifice. This design allows for the handling of high-pressure or high-flow applications that might be challenging for direct-acting solenoid valves. Pilot-operated solenoid valves are commonly used in various industrial and commercial applications. Key features and applications include:
Key Features of Pilot Operated Solenoid Valves
Two-Stage Operation
A pilot-operated solenoid valve consists of two main components: the pilot valve and the main orifice. The pilot valve is a smaller valve that is controlled by the solenoid, and it, in turn, controls the operation of the larger main valve.
High-Pressure Handling
Because of their design, pilot-operated solenoid valves are well-suited for applications with high-pressure differentials. The small pilot valve can operate with relatively low pressure, while the main valve can handle high-pressure fluids.
High-Flow Capacity
These valves are capable of handling high flow rates, making them suitable for applications where a significant volume of fluid needs to be controlled.
Remote Control
The solenoid coil can be located at a distance from the main valve, allowing for remote control of the valve, which is useful in automated systems.
Quick Response
Pilot-operated solenoid valves can provide rapid response times when the solenoid is energized, allowing for precise control of fluid flow.
Applications for Pilot Operated Solenoid Valves
Industrial Process Control
Pilot-operated solenoid valves are commonly used in industrial processes, such as in the control of steam, gas, or liquids in manufacturing and chemical processing.
Water Treatment
Pilot-operated solenoid valves are used in water treatment systems to control the flow of water, chemicals, and other fluids in applications like reverse osmosis, filtration, and disinfection.
Oil and Gas Industry
These pilot-operated solenoid valves are employed in the oil and gas industry for controlling the flow of various fluids, including crude oil, natural gas, and process chemicals.
Irrigation Systems
In agricultural and landscaping irrigation systems, pilot-operated solenoid valves are used for controlling the flow of water to different zones.
In power plants, pilot-operated solenoid valves can be used for controlling steam flow, cooling water, and other fluids in various processes.
Pharmaceuticals
Pilot-operated solenoid valves are used frequently in pharmaceutical manufacturing for precise fluid control and batch processes.
Contact AGB Industries for Custom Solenoid Valve Solutions
The choice between a direct-acting solenoid valve and a pilot-operated solenoid valve depends on the specific requirements of the application, including pressure, flow rate, response time, and the size of the valve. Pilot-operated solenoid valves are favored when handling high-pressure or high-flow applications where precise control is essential.
Contact us for more information about pilot-operated solenoid valves, or request a quote to get started on your order today!
